CARPOINT 0524731 Tour de France Horn | 12V | 117dB | Pneumatic | Ships Today

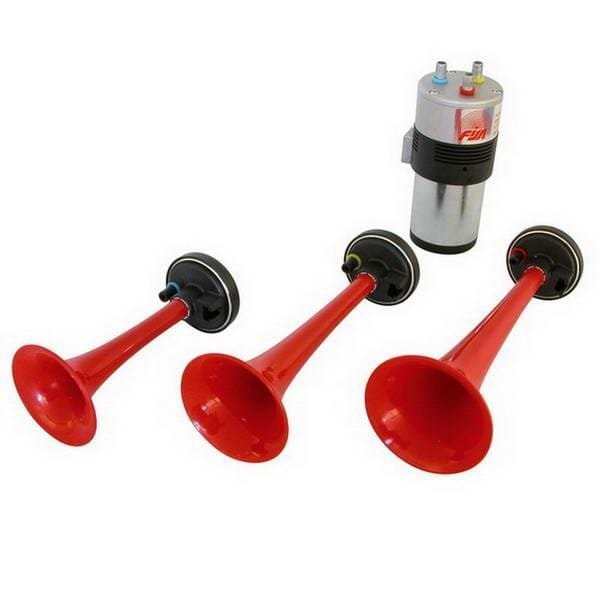

The CARPOINT 0524731 Tour de France horn delivers three-tone pneumatic sound at 117 decibels. Designed for 12V systems, it produces low, middle, and high tones simultaneously. Direct fastening simplifies chassis mounting. At £108.99, this is a premium audible warning device for commercial vehicles, classic cars, or any 12V application requiring exceptional sound presence.
What Is This Tour de France Horn?
The Role of a Horn on a Commercial Vehicle
A horn is a mandatory safety component on every vehicle used on UK and EU roads. It provides an audible warning in hazardous situations. According to UK Government vehicle regulations, horns must produce a continuous, uniform sound and are tested during annual inspections.
What This Pneumatic Horn Includes
This horn uses pneumatic operation rather than a standard electromagnetic diaphragm. Compressed air passes through three separate trumpets, each tuned to a different frequency. The result is a rich, multi-tonal sound that carries further than single-tone horns.
For technical information on vehicle audible warning devices, refer to Bosch automotive electrical systems.
Full Specifications for CARPOINT 0524731 Tour de France horn
| Specification | Detail |
|---|---|
| Item Number | 0524731 |
| Manufacturer | CARPOINT |
| Product Line | Tour de France |
| Voltage | 12V |
| Sound Level | 117 dB(A) |
| Operating Mode | Pneumatic |
| Signal Type | Low, middle, high tone |
| Fastening Type | Direct fastening |
| Condition | New |
| EAN | 8711293058075 |
Vehicle Compatibility
Confirming Fitment
This horn fits any 12V vehicle requiring a high-output warning device. Before ordering, confirm:
Your vehicle uses a 12V electrical system. The mounting location provides sufficient space for the trumpets and compressor. Direct fastening requires a secure chassis or bracket mounting point.
If uncertain about fitment, our parts team can assist before you order.
Cross-Reference
| Reference | Number |
|---|---|
| CARPOINT Part Number | 0524731 |
| Product Line | Tour de France |
| Voltage | 12V |
| Sound Level | 117 dB |
When to Replace Your Horn
Signs of Failure
Watch for these indicators:
No sound – Press the button and nothing happens. Check the fuse and relay first. If power is present but the horn is silent, replacement is needed.
Weak or distorted sound – Reduced volume or raspy, uneven tone indicates internal failure. A new unit restores full 117dB output.
Single tone only – Only low, only middle, or only high tone produces. One trumpet has failed. A working unit delivers all three tones.
Legal Requirements
All motor vehicles on UK and EU roads must carry a functioning horn. According to UK Construction and Use Regulations, horns must not produce a harsh or discordant sound. The three-tone output of this horn meets these requirements.
Annual testing includes mandatory horn inspection. HELLA vehicle horn guidelines confirm pneumatic horns are permitted on commercial vehicles. This unit meets all applicable standards.
Why Choose The CARPOINT 0524731 Tour de France horn
117dB Output
At 117 decibels, this horn is significantly louder than standard units (95-105dB). For vehicles operating in high-noise environments, the additional volume ensures the warning is heard.
Three-Tone Pneumatic Operation
Compressed air passes through three separately tuned trumpets. The low, middle, and high tones blend to create a rich, multi-frequency signal that cuts through ambient noise effectively.
Tour de France Heritage
The Tour de France product line takes its name from the cycling race’s traditional caravan vehicles, which used distinctive multi-tone horns. This unit brings that classic sound to modern vehicles.
Direct Fastening
The horn mounts directly to the chassis or existing bracket. No complex adaptor systems or custom fabrication required.
Installation of CARPOINT 0524731 Tour de France horn
This horn requires basic electrical and mechanical knowledge. Direct fastening means the unit bolts directly to a suitable location. Connect the wiring to the existing horn circuit, observing correct polarity. For vehicles with only one horn wire, ground the second terminal to the chassis.
The horn includes an integrated pneumatic compressor. No external air supply is needed. Ensure the compressor intake is not obstructed after installation.
Always test after installation. Press the horn button and confirm full 117dB three-tone output.
For installation guidance, consult Mercedes-Benz truck service documentation.
Frequently Asked Questions for CARPOINT 0524731 Tour de France horn
Q: Does this horn work on 12V vehicles only?
Yes. This unit is designed for 12V systems. Do not fit to 24V trucks without a voltage converter.
Q: How loud is this horn?
117 decibels — significantly louder than standard horns (95-105dB).
Q: Does this horn require external air?
No. An integrated pneumatic compressor is included. No external air tank needed.
Q: What tones does it produce?
Low, middle, and high tones simultaneously – a three-tone signal.
Q: Is this horn legal for road use?
Yes. It meets UK and EU requirements for audible warning devices.
Q: What is direct fastening?
The horn mounts directly to the chassis or existing bracket using standard bolts.
Q: What is the warranty?
CARPOINT typically provides 24 months. Keep your receipt.
Q: Does this ship today?
Yes. Orders before 2pm GMT ship same day.
