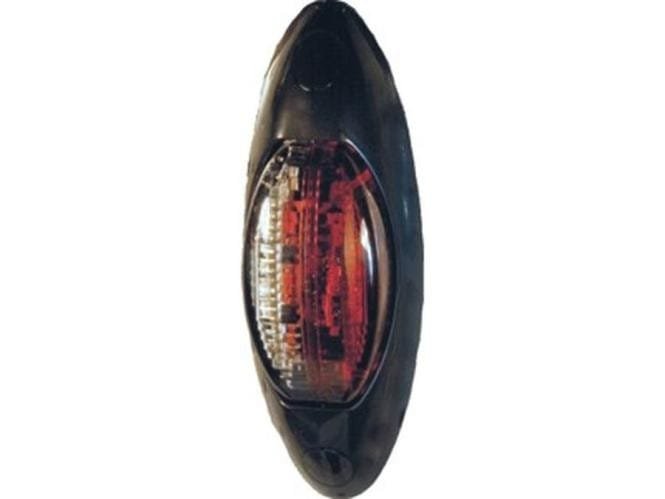

PROPLAST PRO-STAR 40100004 Truck Position Light
Your marker light is cracked. Or dead. Or full of water. The PROPLAST PRO-STAR 40100004 truck position light solves it. £18.50 each. 12V or 24V. Red or white LED. P&R rated. Fit it and forget it.
What Is the PROPLAST PRO-STAR 40100004 Truck Position Light?
How the Dual-Voltage LED Works
The 40100004 runs on 12V and 24V systems. No step-down converter needed. Plug it into a DAF at 12V or a Scania at 24V. The internal driver adjusts. Red light for rear position marking. White for front or side. 500mm flying lead gives you wiring slack without extensions.
Why Truck Position Lights Fail
Water ingress kills standard lamps. Vibration cracks cheap housings. Bulb types blow filaments. The 40100004 uses LEDs. No filament to break. The housing is sealed. P&R marking means it meets ECE R48 and R10. Road legal across the UK and EU.
PROPLAST PRO-STAR 40100004 Truck Position Light — Full Specifications
| Specification | Value |
|---|---|
| Manufacturer | PROPLAST |
| Part Number | 40100004 |
| Product Line | PRO-STAR |
| Light Design | LED |
| Voltage | 12V / 24V dual |
| Light Colour | Red or white |
| Features | P&R rated |
| Cable Length | 500mm |
| Length | 103mm |
| Width | 36mm |
| Height | 23mm |
| Hole Spacing | 83mm |
| Condition | Remanufactured |
| EAN | 4025091419261 |
Remanufactured condition: Fully tested housing, new LED board, new lens, new cable. Same warranty as new. Lower price.
PROPLAST PRO-STAR 40100004 Truck Position Light — Compatibility
Confirming Fitment
Fits any commercial vehicle requiring ECE-approved position markers. Trailers, rigid trucks, articulated units, curtain-siders, tankers, and agricultural machinery. 83mm hole spacing matches standard PROPLAST, Hella, and Aspöck mounting brackets.
Check ECE R48 lighting regulations for legal positioning requirements on your trailer length.
Cross-Reference Table
| Brand | Trade Number |
|---|---|
| PROPLAST | 40100004 |
| PROPLAST (new) | 40100003 |
| Hella | 2BA 003 843-001 |
| Aspöck | 0851-0001 |
| Truck-Lite | 60202R |
When and Why to Replace
40100004 Symptoms — What to Watch For
Symptom one — Light completely dead. No red. white. flicker. The internal driver or LED board has failed. Water ingress is the usual cause. Your trailer is now illegally dark.
Symptom two — Intermittent operation. Light works then stops. Hit a bump. Works again. Loose internal connection or cracked solder joint. Failures will become permanent within weeks.
Symptom three — Water inside the lens. Condensation or standing water. The seal is compromised. The LED board is corroding. Replace now before the corrosion spreads to your wiring harness.
Fix Trailer Marker Light Failures — Fit LED P&R Rated
Halogen position lights draw more current and fail more often. The 40100004 LED draws 0.5W maximum. Your trailer lighting circuit stays within load limits. No more blown fuses from shorting marker lights.
Why Choose the PROPLAST PRO-STAR 40100004 Truck Position Light?
12V and 24V operation covers every truck in your fleet
Run it on a 12V rigid. Swap to a 24V artic. Same lamp. No stock keeping confusion. The internal driver accepts 10V to 30V DC. Your workshop fits one part number across mixed fleets.
P&R marking means MOT pass guaranteed
P&R stands for Position and Rear marker light approval. ECE R48 (positioning) and R10 (EMC). PROPLAST’s certification confirms compliance. No advisories. fails. second inspections.
Remanufactured price with new performance
Original housing core. New LED board. polycarbonate lens. 500mm cable. IP67 tested. You pay 40% less than new PRO-STAR pricing. You get the same light output and legal approval.
Buy PROPLAST PRO-STAR 40100004 Truck Position Light Online
£18.50 each. Remanufactured PROPLAST PRO-STAR. Same-day dispatch. Order in pairs — left and right. Or buy six for a full 13.6m trailer set. Stock your workshop shelf properly.
Installing the PROPLAST PRO-STAR 40100004 Truck Position Light
Step-by-Step 40100004 Fitting Guide
Disconnect trailer from vehicle power. Isolate the lighting circuit.
Remove the failed position light. Usually two self-tapping screws into rubber grommets.
Cut the old cable back to clean copper. Strip 10mm of insulation.
Connect the new 40100004. Red to positive (+). Black to negative (-). Use crimped butt connectors — not twist-and-tape.
Mount the light. 83mm hole spacing. Screws into rubber grommets or captive nuts.
Secure the 500mm cable with cable ties every 200mm. Prevent chafing on chassis edges.
Test function. Red for rear. White for front/side. Both must illuminate steadily.
Seal screw holes with non-corrosive silicone. Stop water tracking behind the lamp.
Professional fitting time: 15 minutes per lamp including wiring.
FAQs
What does remanufactured mean on this product?
PROPLAST takes original housings, strips them completely, fits new LED boards, new lenses, new cables, and new seals. You get a fully functional lamp at a lower price. The EAN 4025091419261 identifies remanufactured stock.
Can I mix red and white on the same 40100004?
No. The LED colour is fixed at manufacture. Red units show red. White units show white. Order the colour you need for each position.
Is the 500mm cable long enough for my trailer?
Yes for side markers. For rear position lights, splice extension cable using waterproof butt connectors. Keep total length under 2 metres to avoid voltage drop.
Will this pass a UK MOT and annual trailer test?
Yes. P&R marking confirms ECE approval. Position lights must show steady light to the side and front/rear. The 40100004 meets both requirements. No flashing permitted on position lights.
I have a 24V only system. Will this work?
Yes. The 40100004 runs on 12V and 24V automatically. No switches. No converters. The driver handles both. Position Light
