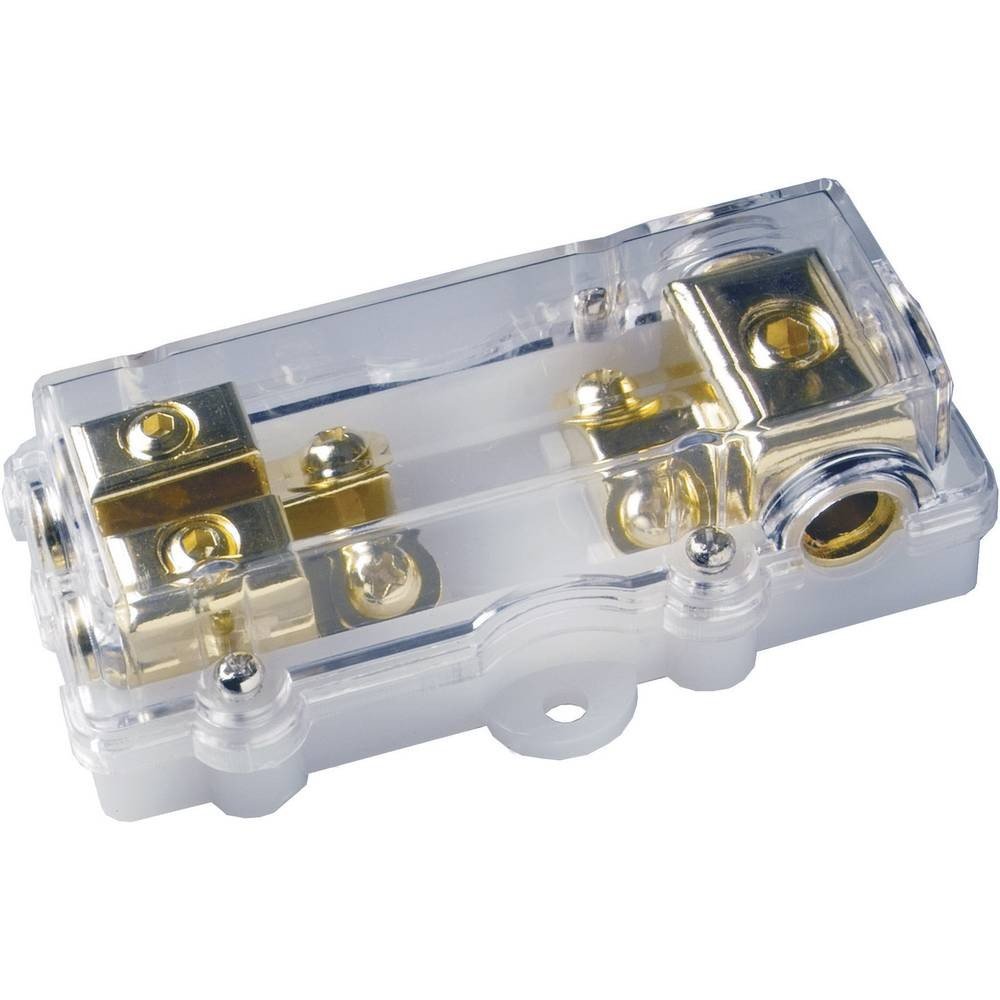

Sinuslive M-ANL-1/2 13233 Fuse Holder
Your ANL fuse holder has melted. Or the terminals are corroded. Or you are upgrading your truck’s auxiliary power system. The Sinuslive M-ANL-1/2 13233 fuse holder fixes it. £34.49. 80A. Gold-plated surface. Accepts 16mm² or 25mm² cable. Built for commercial vehicle installations.
What Is the Sinuslive M-ANL-1/2 13233 Fuse Holder?
How the ANL Fuse Holder Works
The 13233 is a heavy-duty ANL fuse holder for 80A mini-blade plug-in fuses. The “M-ANL-1/2” designation means mid-size ANL format. Gold-plated contact surfaces reduce resistance. No voltage drop. No heat buildup. Accepts 16mm² or 25mm² cross-section cable — that is proper commercial wiring, not thin automotive crap.
Why Standard Fuse Holders Fail
Plastic holders with brass terminals corrode. Resistance climbs. Heat builds. The holder melts before the fuse blows. Cheap holders use steel screws that rust. The 13233 uses gold-plated surfaces throughout. No corrosion. No resistance rise. Sinuslive’s technical documentation confirms continuous 80A rating without temperature derating.
Sinuslive M-ANL-1/2 13233 Fuse Holder — Full Specifications
| Specification | Value |
|---|---|
| Manufacturer | Sinuslive |
| Part Number | 13233 |
| Product Line | Sinuslive M-ANL-1/2 |
| Current Strength | 80A |
| Fuse Type | For mini-blade plug-in fuse (ANL) |
| Type | ANL |
| Cross Section | 16mm² or 25mm² |
| Surface | Gold-plated |
| Condition | New |
| EAN | 4016631004825 |
Sinuslive M-ANL-1/2 13233 Fuse Holder — Compatibility
Confirming Fitment
Fits any 12V or 24V commercial vehicle auxiliary power installation requiring 80A protection. Use with inverters, secondary battery banks, winches, hydraulic power packs, worklight distribution boxes, and refrigerated body supplies. Accepts standard ANL mini-blade fuses (not included).
Check BS EN 61439: Low-voltage switchgear standards for commercial vehicle electrical distribution requirements — proper fuse holders are not optional on fleet installations.
Cross-Reference Table
| Brand | Trade Number |
|---|---|
| Sinuslive | 13233 |
| Sinuslive | M-ANL-1/2 |
| Blue Sea Systems | 5502 |
| Bussmann | ANL-80-HD |
| Victron Energy | ANL80 |
| Renogy | ANL80H |
— When and Why to Replace
13233 Symptoms — What to Watch For
Symptom one — Melted plastic around the old holder. Your existing holder has deformed from heat. Terminals have high resistance. This is a fire risk. Replace immediately.
Symptom two — Intermittent power to auxiliary systems. Inverter works then cuts out. Voltage drops under load. The fuse holder terminals are corroded or loose. The 13233 gold plating stops this.
Symptom three — Voltage drop across the holder. Measure voltage before and after the holder under load. More than 0.2V difference means internal resistance. Your cheap holder is stealing power.
Fix Auxiliary Power Issues — Install Gold-Plated ANL Holder
Your inverter draws 80A at full load. That current passes through the fuse holder. Standard brass terminals create resistance. Resistance creates heat. Heat creates failure. The 13233 gold-plated contacts keep resistance below 0.5 milliohm. Full power reaches your equipment.
Why Choose the Sinuslive M-ANL-1/2 13233 Fuse Holder?
Gold-plated terminals — zero corrosion
Gold does not oxidise. Your truck lives in road salt, rain, and condensation. Brass terminals corrode in months. The 13233 stays clean. Contact resistance stays low. Your expensive inverter gets full voltage.
Accepts 16mm² or 25mm² cable — proper commercial gauge
Cheap holders take 10mm² maximum. Too thin for 80A over any distance. The 13233 accepts 16mm² for runs up to 5 metres. 25mm² for longer runs. Voltage drop stays under 3%.
ANL mini-blade format — standard commercial fuses
ANL fuses are available everywhere. Truck stops. Motor factors. Online. The 13233 takes standard mini-blade ANL types. No proprietary fuses. No waiting for delivery. Replacements are off-the-shelf.
Buy Sinuslive M-ANL-1/2 13233 Fuse Holder Online
£34.49. Gold-plated. 80A rated. Takes 16-25mm² cable. Same-day dispatch. Buy one for each auxiliary circuit. Stop chasing voltage drop faults.
Installing the Sinuslive M-ANL-1/2 13233 Fuse Holder
Step-by-Step 13233 Fitting Guide
Disconnect battery negative. Isolate both battery banks if dual system.
Mount the 13233 as close to the power source as possible. Within 300mm of battery or distribution point.
Strip 12mm of insulation from your 16mm² or 25mm² cable ends.
Crimp or solder ring terminals onto the cable ends. Use hydraulic crimper for 25mm².
Loosen the gold-plated terminal screws on the 13233 fully.
Insert the ring terminals under the screw heads.
Tighten to manufacturer specification. Do not overtighten — gold plating is soft.
Insert the correct rating ANL mini-blade fuse (not included). 80A maximum as rated.
Secure the holder body to the vehicle using mounting screws or cable ties.
Reconnect battery. Test voltage drop under load.
Critical: Fuse holders must be protected from mechanical damage and water ingress. Mount inside a distribution box or in a dry location. Open-air mounting on a chassis rail will fill with water.
Professional fitting time: 20 minutes excluding cable routing.
FAQs —
What size cable should I use with this holder?
16mm² for 80A loads up to 5 metres cable length. 25mm² for 80A loads from 5 to 10 metres. Use 35mm² for longer runs — but the 13233 terminals accept 25mm² maximum. For 35mm², step up to a larger ANL holder.
Does the 13233 include the fuse?
No. Fuse sold separately. The holder accepts standard ANL mini-blade fuses. Buy an 80A ANL fuse to match the holder rating.
Can I use this on a 24V truck?
Yes. The 13233 is voltage-agnostic. Rating is 80A at 12V or 24V. Power calculation changes but current rating stays the same. Your 24V system at 80A is 1920W. That is a serious auxiliary load.
What is the difference between ANL and M-ANL?
ANL is the standard format. M-ANL is mid-size — smaller physical footprint but same electrical rating. The 13233 is M-ANL. Takes mini-blade ANL fuses. Not the full-size ANL fuses used in boatyards.
Why gold-plated instead of tin or silver?
Gold does not oxidise. Tin and silver both form oxide layers over time. Those layers add resistance. Gold stays clean for the life of the holder. Worth the extra cost on a commercial vehicle.
My old holder melted at 60A. Will this one survive 80A?
Yes, if installed correctly. The 13233 is rated for 80A continuous. Gold-plated surfaces reduce heat generation. But check your cable size. Undersized cable creates heat at the terminals regardless of the holder quality.
